DLS-LH20230607-1
C-Laser
20230607
General Introduction:

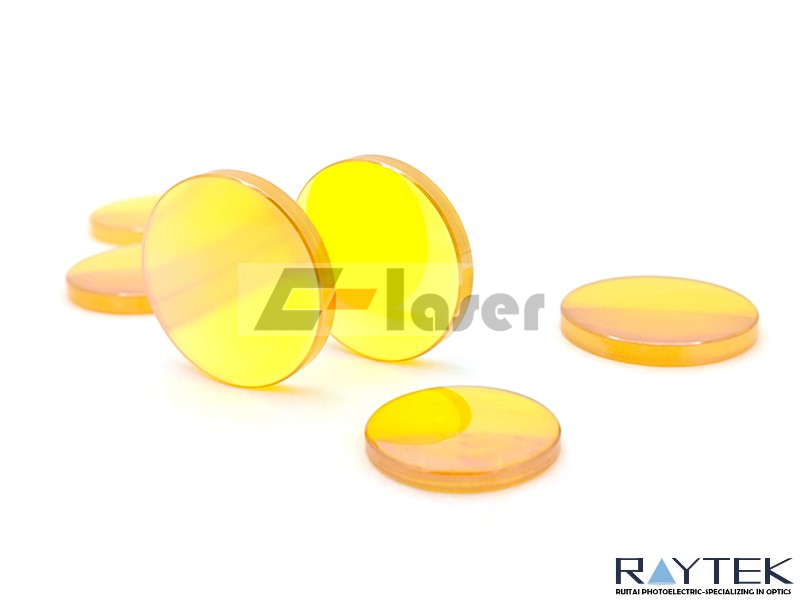

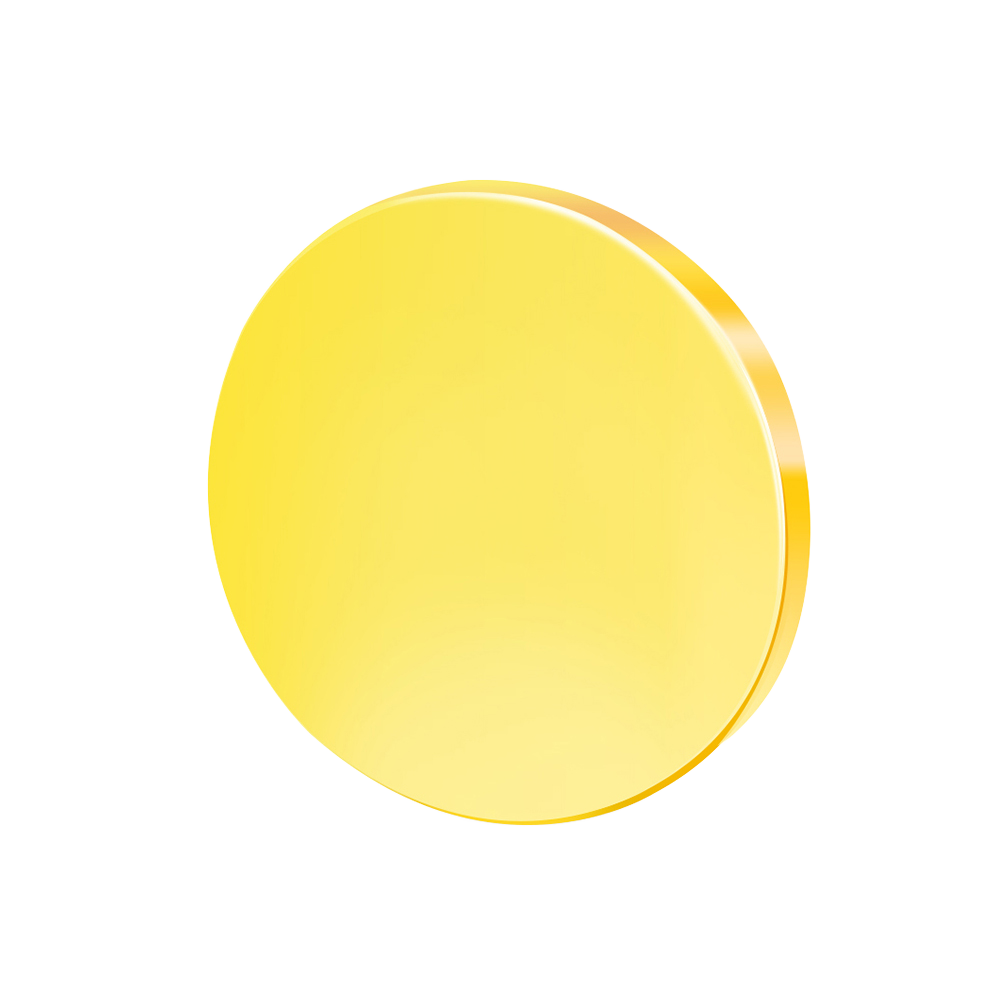

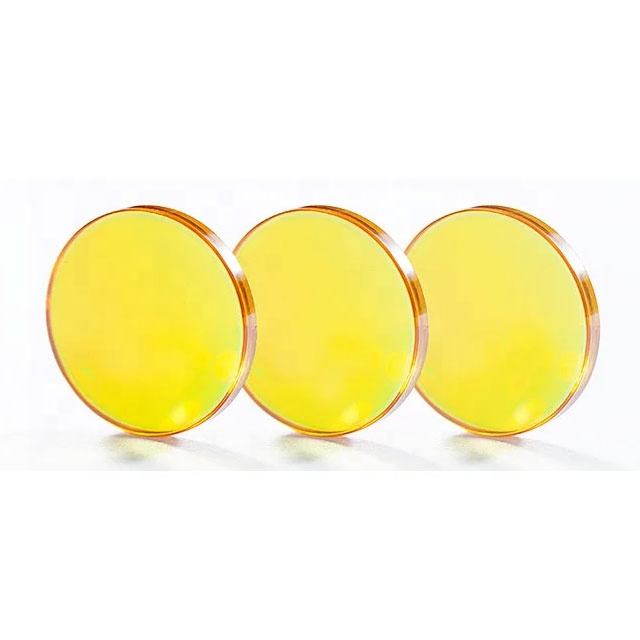

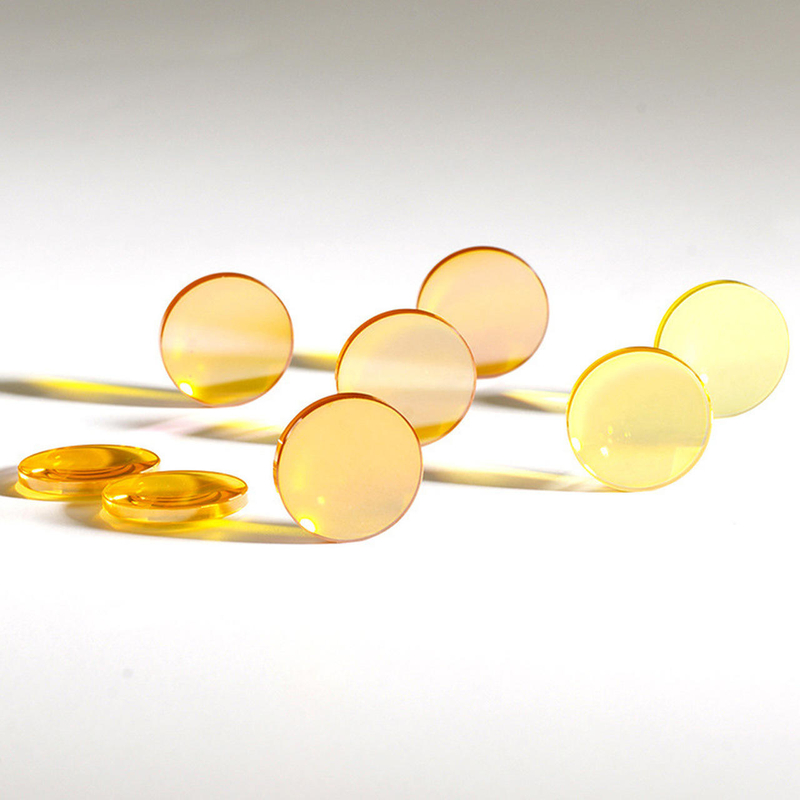

Zinc selenide has low absorption to infrared wavelengths and can transmit visible light. It is a material for making infrared lenses, Windows, output coupling mirrors and beam expanding mirrors.
Main Characteristics:
(1) Transmission range is 600nm to 16μm.
(2) Low dispersion zinc selenide materials are usually prepared by vapor deposition and are commonly used in thermal imaging, infrared imaging, and medical systems.
(3) In the high-power CO2 laser system, it has a very low absorption correlation coefficient and high thermal shock resistance.
Thermal Properties:
| Items | Value |
| Coefficient of Thermal Expansion [K-1] @273K 7.1 x 10-6 [K-1] @373K 7.8 x 10-6 [K-1] @473K 8.3 x 10-6 | [K-1] @273K 7.1 x 10-6 [K-1] @373K 7.8 x 10-6 [K-1] @473K 8.3 x 10-6 |
| Thermal conductivity [JK-1m-1s-1] @298K | 18 |
| Heat capacity [Jg-1K-1] @298K | 0.339 |
Optical Properties:
| Items | Value |
| 10% transmission limits (t=6mm) | 0.5μm - 22μm |
| Index of refraction inhomogeneity (Dn/n) | <3ppm @633nm |
| Thermo-optic coefficient dn/dT (298-358K) K-1 @ 0.6328μm K-1 @ 1.15μm K-1 @ 3.39μm K-1 @ 10.6μm | 1.07 x 10-4 7.0 x 10-5 6.2 x 10-5 6.1 x 10-5 |
| Bulk absorption coefficient cm-1 @ 1.3μm cm-1 @ 2.7μm cm-1 @ 3.8μm cm-1 @ 5.25μm cm-1 @ 10.6μm | 5.0 x 10-3 7.0 x 10-4 4.0 x 10-4 4.0 x10-4 5.0 x 10-4 |
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: offers quality warranty for our optics products with "3R" policy--return, replace & refund policy.
For any inferior-quality products, responsible for return, replacement and refund.
