HERAEUS SUP 300/311/312/313/3001/3002/3301/330

General Introduction:

Heraeus fused silica is a high purity synthetic fused quartz material. With high chemical purity and corrosion resistance, high softening temperature, good heat resistance, low thermal expansion, high thermal shock resistance, high transparency from ultraviolet to infrared spectrum, high radiation resistance.

Features:

1. highest purity

2. very low bubble content

3. nearly blemish free

4. surface

5. wide range of geometries

Main Application:

1. Aspheric lens and spherical lens

2. Used for high-value camera objectives, projectors, microscopes, telescopes, binoculars, smart phones, laser applications, night vision devices, glasses lenses

3. Cylindrical lens

4. Used for barcode scanner and laser projector

5. Filter glass

6. For analysis, photography, medical technology and laser protection

7. Window (planar parallel polished component without distortion in optical system)

8. Substrate (such as the material of interference filter)

9. Radiation absorption glass (lead glass)

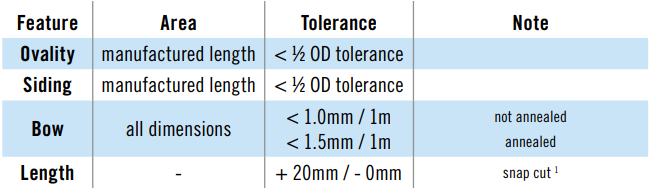

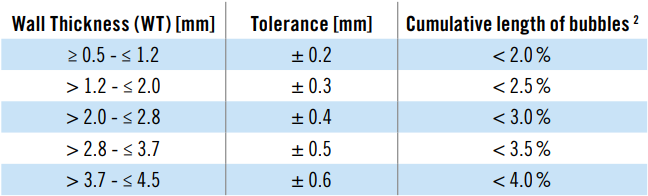

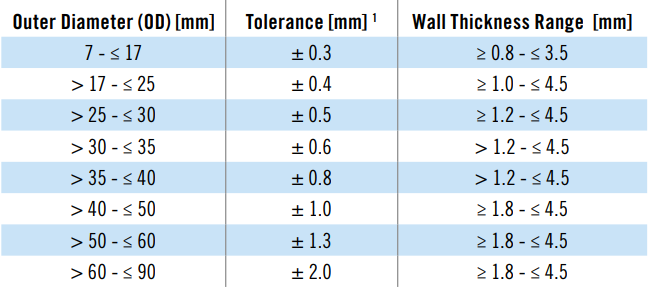

Geometrical Data:
